- Input voltage：380V
- Output power：10KW
- Output voltage(Max)：5KV
- Output current(Max)：2A
|
Main Technical Parameters |
||||
|
Product Name |

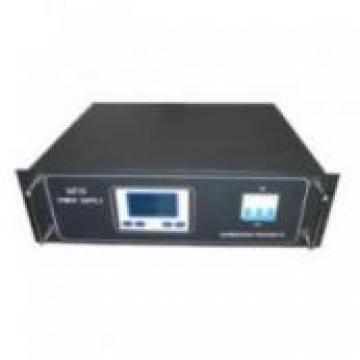

5KV/2A/10KWBipolar SputteringCoatingPower Supply WT10-5K |
|||
|
Product Model |
WT10 |
|||
|
Product Brand |
Yochain |
|||
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|||
|
Input Voltage： |
AC380V±10 % |
|||
|
Output |
Power: |
10KW |
||
|
Current: |
0~ -2A |
|||
|
Voltage: |
0~ -5KV |
|||
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|||
|
Adjustment Accuracy |
≤1 % |
|||
|
Efficiency |
≥90 % |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Power Supply Switch |
DB9Pin Interface |
|||
|
Control Mode: |
Power Supply Panel button Control |
|||
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||||
|
Digital Interface Control：485Communication。AlsoCustom232Interface、 Light fiber etc and above position Machine Connection， via set fixed of Communication Protocol Control Power Supply of each Type Status。 and able return Power Supply of Run status condition |
||||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||||
|
Display Mode: |
English LCD Display |
|||
|
Insulation Class |
B level |
|||
|
Protection Class |
IP20 |
|||
|
Protection response time |
1u S |
|||
|
Input |
to HousingElectric resist |
≥20MΩ |
||
|
Output |
||||
|
Input to HousingWithstand Voltage |
2000V/1min |
|||
|
Input to Output Withstand Voltage |
3500V/1min |
|||
|
OperatingEnvironment |
Temperature Degree： |
-35～+45 C |
||
|
Humidity： |
≤85 % |
|||
|
CoolingMethod： |
Air Cooled |
|||
|
Dimensions： |
480*135*380(mm ) |
|||
|
Mounting Dimensions： |
460*70(mm)3U600mmCabinet type Installation |
|||
|
Features |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|||
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||||
|
|
||||
|
Remarks： |
Factory Default Analog Interface |
|||
|
Output Voltage Minute positive or negative Voltage，Factory Default negative Voltage |
||||
|
accept Other Parameter of Custom |
||||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|||
