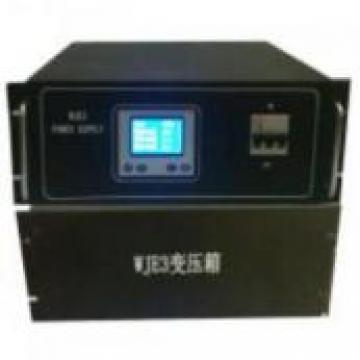

WJE3-DM-5KV/1.5A/7.5KW Bipolar SputteringCoatingPower Supply

Main Technical Parameters

Product Name

5KV/1.5A/7.5KWBipolar SputteringCoatingPower Supply WJE3-DM

Product Model

WJE3-DM

Product Brand

Yochain

Power Supply Type

Fully Digital Controlled Intelligent Power Supply

Input Voltage：

AC380V±10 %

Output

Power:

7.5KW

Current:

0~ -1.5A

Voltage:

0~ -5KV

mode

custom Constant Voltage、Constant Current、Constant Power

Adjustment Accuracy

≤1 %

Efficiency

≥90 %

Power factor

cosΦ≥0.9

Power Supply Switch

DB9Pin Interface

Control Mode:

Power Supply Panel button Control

AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection)

Digital Interface Control：485Communication。AlsoCustom232Interface、 Light fiber etc and above position Machine Connection， via set fixed of Communication Protocol Control Power Supply of each Type Status。 and able return Power Supply of Run status condition

Display Mode:

English LCD Display

Insulation Class

B level

Protection Class

IP20

Protection response time

1u S

Input

to HousingElectric resist

≥20MΩ

Output

Input to HousingWithstand Voltage

2000V/1min

Input to Output Withstand Voltage

3500V/1min

OperatingEnvironment

Temperature Degree：

-35～+45 C

Humidity：

≤85 %

CoolingMethod：

Air Cooled

Dimensions：

480*135*480(mm )

Mounting Dimensions：

460*70(mm)Embedded Installation

Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable

Circuit adopt Module chemical design ，DebuggingingRepair Convenient。

Remarks：

Factory Default Analog Interface

Output Voltage Minute positive or negative Voltage，Factory Default negative Voltage

accept Other Parameter of Custom

Fault Prompt

Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
