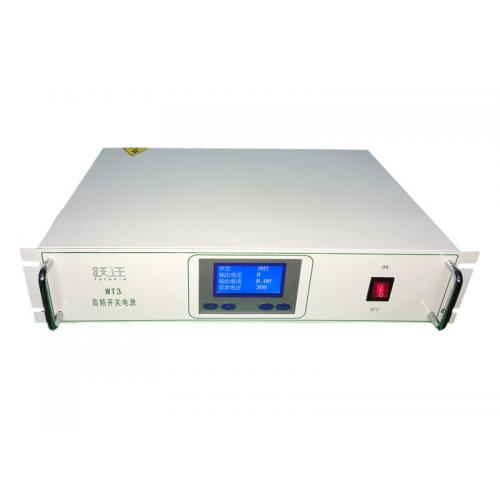

Pulse Magnetic Field Power Supply-Beauty Machine Power Supply

Add to cart

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

Main Technical Parameters
Product Name				Pulse Magnetic Field Power Supply
Product Model				WT3-2KV
Product Brand				Yochain
Power Supply Type				Fully Digital Controlled Intelligent Power Supply
Input Voltage：				AC220V±10 %
Output		Power:		average Power3KW( peak Power8MW)
		Current:		0-8000A
		Voltage:		0-2KV
		Frequency		1Hz-50Hz Adjustable
		Wave Type		can Output Bipolar Nature Sine Wave High Voltage Pulse。Pulse cycle 300u S。
		mode		Pulse Frequency Adjustable，Pulse string Adjustable，Output Voltage Adjustable。
Adjustment Accuracy				≤1 %
Efficiency				≥80 %
Power factor				cosΦ≥0.9
Power Supply Switch				DB9Pin Interface
Control Mode:				Power Supply Panel button Control
				AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Protection
				Digital Interface Control：485Communication。AlsoCustom232Interface，Net network Interface
				IoT Net WIFI Connection，Remote Net network Monitoring
Display Mode:				English LCD Display
Insulation Class				B level
Protection Class				IP20
Protection response time				1u S
Input	to HousingElectric resist			≥20MΩ
Output
Input to HousingWithstand Voltage				2000V/1min
Input to Output Withstand Voltage				3500V/1min
OperatingEnvironment			Temperature Degree：	-35～+45 C
			Humidity：	≤85 %
CoolingMethod：				Air Cooled
Dimensions：				48095370(mm )
Features				Pulse Power Large ，Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable
				Circuit adopt Module chemical design ，DebuggingingRepair Convenient。
				Power Supply of Protection design ， make Power Supply able Workingat each Type complex of Environment，English Prompt Functions， make clear problem accurate accurate
Remarks：				Factory Default Analog Interface and 485 Digital Interface
				with has can amount recovery Functions。
				accept Other Parameter of Custom， can via medical Certification
Fault Prompt				Intelligent Fault Testing Minute analysis , perfect of Protection System， text character Sound sound Fault raise wake and Display。
suitable Field				Used for Driver Magnetic Field Line ring ， generate strong Large of Magnetic Field。
