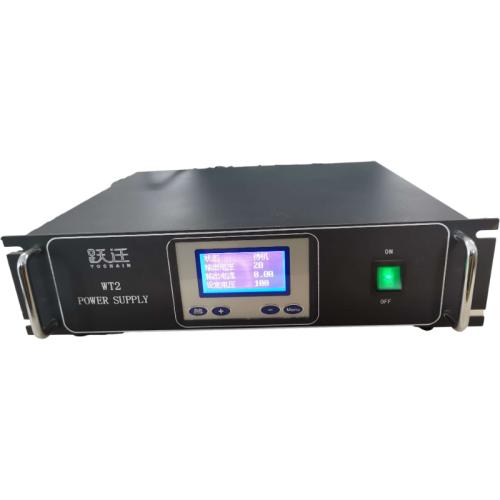

WT2Small Power High Voltage Power Supply 10KV~100KV ElectrospinningPower Supply-Adjustable high voltage power supply

Add to cart

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

Main Technical Parameters
Product Name		High Voltage Power Supply
Product Model		WT2-10~100KV High Voltage Switching Power Supply Series
Product Brand		Yochain
Power Supply Type		Fully Digital Controlled Intelligent Power Supply
Input Voltage：		AC220V±10 %
Output	Power:	50W
	Current:	5mA~0.5mA( to response Output Voltage10KV-100KV)
	Voltage:	10KV~100KV(Series Parameter，Power Supply*Current=50VA)
	Wave Type	DC
	mode	custom Constant Voltage、Constant Current、Constant Power
Adjustment Accuracy		≤0.5 %
Efficiency		≥90 %
Power factor		cosΦ≥0.9
Power Supply Switch		DB9Pin Interface
Control Mode:		Power Supply Panel button Control
		AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection)
		Digital Interface Control：485Communication。AlsoCustom232Interface
		IoT Net WIFI Connection，Remote Net network Monitoring
Display Mode:		English LCD Display
Insulation Class		B level
Protection Class		IP20
Protection response time		1u S
Input	to HousingElectric resist	≥20MΩ
Output
Input to HousingWithstand Voltage		2000V/1min
Input to Output Withstand Voltage		3500V/1min
OperatingEnvironment	Temperature Degree：	0～35 C
	Humidity：	≤85 %
CoolingMethod：		Air Cooled
Dimensions：		40095370(mm )
Load Special Nature		Electric Resistive Load，Electric Capacitive Load，Negative Resistance Load，Nonlinear Load，Allows Load Short Circuit， short Road can amount Small
Features :		Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable
		Circuit adopt Module chemical design ，DebuggingingRepair Convenient。

Remarks：		Output Voltage Minute positive Pole Nature and negative Pole Nature， this for Series Product，Output Voltage * Current=500VA
		Factory Default Analog Interface and 485 Digital Interface， negative Pole Nature Voltage
Fault Prompt		Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
