Main Technical Parameters |
||
|
Product Name |

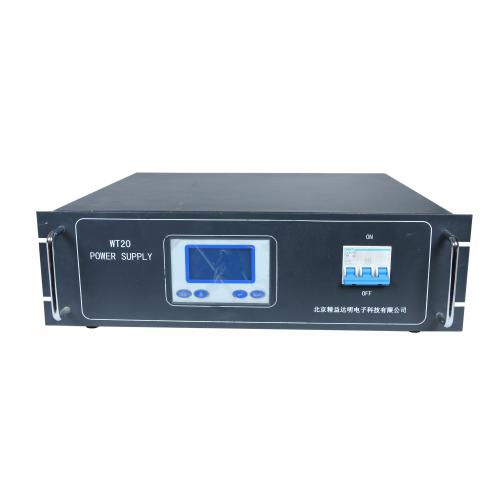

20KW Sine Wave Electronic AC Pressure Regulation Device |
|
|
Product Model |
WAC20 |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC380V±10 % |
|
|
Output |
Power: |
20KW |
|
Current: |
0~40A |
|
|
Voltage: |
0~380V |
|
|
Frequency |
50~400Hz |
|
|
Wave Type |
Sine Wave |
|
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|
|
Adjustment Accuracy |
≤1 % |
|
|
Efficiency |
≥90 % |
|
|
Power factor |
cosΦ≥0.9 |
|
|
Control Mode: |
Power Supply Panel button Control |
|
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||
|
Digital Interface Control：485Communication。AlsoCustom232Interface |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
English LCD Display |
|
|
Display content ： |
WorkingStatus，Output Voltage，Output Current， set value |
|
|
Output Protection |
Output overvoltage ，Output overcurrent ，Output malfunction |
|
|
Input Protection |
Input overvoltage ，Input undervoltage ，Input overcurrent ， phase loss |
|
|
safe Protection |
GroundingProtection， leak Electric Protection， external control Protection, lightning protection Protection，Overheat |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤80 % |
|
|
CoolingMethod： |
strong system Air Cooled |
|
|
Dimensions： |
480*135*380(mm ) |
|
|
Features : |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||
|
|
||
|
Protection Functions strong Large ，WorkingStable and Reliable，Start Shock Small ， Load Suitable Range Wide。 |
||
|
Application Range |
can Driver Electric resist Nature，Capacitor Nature，Electric sense Nature Load。 for example Electric Machine，Voltage Transformation Device，HeatingDevice etc 。 |
|
|
Remarks： |
Factory Default TTL Analog Interface and 485Interface |
|
|
Fault Prompt |
Fully Digital Controlled Intelligent Power Supply, has 10 multi Type Fault Testinghandle System，Fault With Sound sound Prompt and English raise wake ， can Output Fault Type |
|
High Frequency Switch tube AC Pressure Regulation Device vs. traditional self couple type Pressure Regulation Device：Technical Nature can to compare Minute analysis
| Special Nature maintain Degree | High Frequency Switch tube Pressure Regulation Device | traditional self couple type Pressure Regulation Device | win out method |
|---|---|---|---|
| Working Efficiency | Pole High (>95 % ) | compare High (90 % -95 % ) | High Frequency Switch tube |
| Response Speed | Pole fast ( micro Second level ) | slow ( milli Second/Second level ) | High Frequency Switch tube |
| Volume Weight | Compact light then | stupid heavy huge Large | High Frequency Switch tube |
| can reliable Maintenance | no touch point ， free Maintenance | has carbon brush Wear， need Maintenance | High Frequency Switch tube |
| Wave Type mass | Pure net Sine Wave | has Interference miscellaneous Wave | High Frequency Switch tube |
| Adjustment Accuracy | High Precision，Wide Range | general Accuracy，Range narrow | High Frequency Switch tube |
| first start Cost | compare High | compare Low | self couple type Pressure Regulation Device |
