Main Technical Parameters |
||
|
Product Name |

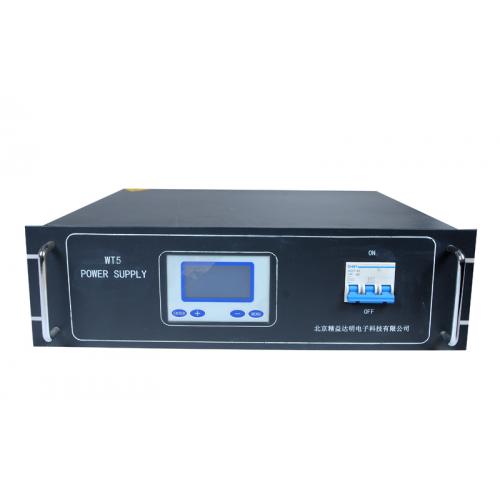

WT5 Low Power Variable Pole Nature High Voltage Power Supply | |
|
Product Model |
WT5 |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC220V±10 % |
|
|
Output |
Power: |
1KW |
|
Current: |
0~1A(Pulse Current)0~1mA( average Current) |
|
|
Voltage: |
0~100KV(Series Parameter) |
|
|
Frequency |
0-255Hz,(Customizable) |
|
|
Wave Type |
any meaning Pole Nature DC，Unipolar Nature Pulse，Bipolar Nature Pulse。Pulse duty cycle ：0~99 % |
|
|
mode |
50~100 % Pressure Regulation |
|
|
Adjustment Accuracy |
≤10 % |
|
|
Efficiency |
≥80 % |
|
|
Power factor |
COSΦ≥0.9 |
|
|
Control Mode: |
Power Supply Panel button Control |
|
|
TTL Interface Control，485 Digital Communication Control |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
English LCD Display |
|
|
Display content ： |
WorkingStatus，Output Voltage，Output Current， set value |
|
|
Output Protection |
Output overvoltage ，Output overcurrent ，Output malfunction |
|
|
Input Protection |
Input overvoltage ，Input undervoltage ，Input overcurrent ， phase loss |
|
|
safe Protection |
GroundingProtection， leak Electric Protection， external control Protection, lightning protection Protection，Overheat |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤80 % |
|
|
CoolingMethod： |
Air Cooled |
|
|
Dimensions： |
480*135*380(mm ) |
|
|
Features : |
Output Pulse Current Large ， average Current Small ， fit Capacitive Load， generate Electric field signal |
|
|
|
||
|
Remarks： |
||
|
brief |
|
|
Product brief this Product for Ultra Fast Pulse Generation Device， general Used for Special special Industry Scientific Research Usage。 general Output Pulse very narrow ， instant between Power very Large 。 can Used for High speed Pulse experiment ，Ultra Pulse Magnetron Sputtering ， wastewater treatment ， strongElectric field ， strongMagnetic Fieldgenerate ， etc Special special Field。
|
core Application Field
