Main Technical Parameters |
||||
|
Product Name |

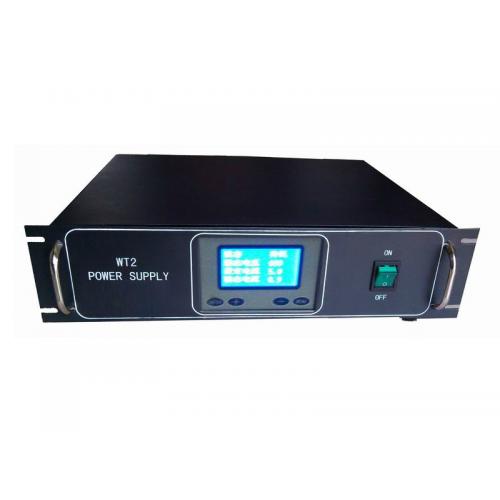

WT2Pole Low Frequency High Voltage Ultra Pulsed Power Supply |
|||
|
Product Model |
WT2 |
|||
|
Product Brand |
Yochain |
|||
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|||
|
Input Voltage： |
AC220V±10 % |
|||
|
Output |
Power: |
1KW |
||
|
Current: |
0~100A(Series Parameter) |
|||
|
Voltage: |
20KV |
|||
|
Frequency |
0.1Hz-10Hz |
|||
|
Wave Type |
can Output Square Wave Pulseor person Large Current Shock Wave。 above Liter speed Degree10n S。AlsoCustom Bipolar Nature |
|||
|
mode |
Constant Voltage |
|||
|
Adjustment Accuracy |
≤1 % |
|||
|
Efficiency |
≥90 % |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Power Supply Switch |
DB9Pin Interface |
|||
|
Control Mode: |
Power Supply Panel button Control |
|||
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||||
|
Digital Interface Control：485Communication。AlsoCustom232Interface |
||||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||||
|
Display Mode: |
English LCD Display |
|||
|
Insulation Class |
B level |
|||
|
Protection Class |
IP20 |
|||
|
Protection response time |
1u S |
|||
|
Input |
to HousingElectric resist |
≥20MΩ |
||
|
Output |
||||
|
Input to HousingWithstand Voltage |
2000V/1min |
|||
|
Input to Output Withstand Voltage |
3500V/1min |
|||
|
OperatingEnvironment |
Temperature Degree： |
-35～+45 C |
||
|
Humidity： |
≤85 % |
|||
|
CoolingMethod： |
Air Cooled |
|||
|
Dimensions： |
400*95*370(mm |
|||
