Main Technical Parameters |
||||
|
Product Name |

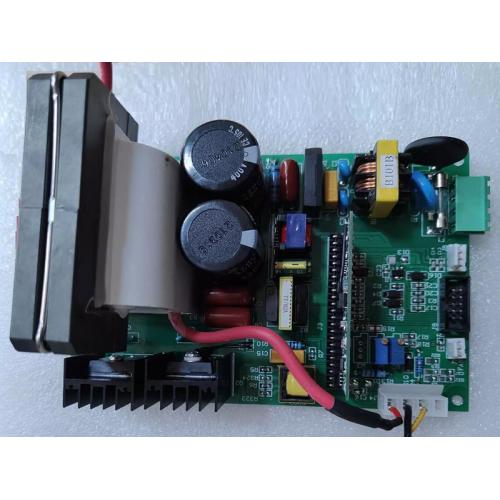

WG2High Voltage Power Supply |
|||
|
Product Model |
WG2-10KV |
|||
|
Product Brand |
Yochain |
|||
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|||
|
Input Voltage： |
AC220V±10 % |
|||
|
Output |
Power: |
500W |
||
|
Current: |
50mA |
|||
|
Voltage: |
1K~10KV(Customizable) |
|||
|
Frequency |
no |
|||
|
Wave Type |
positive Pole Nature DC |
|||
|
mode |
Constant Voltage(Customizable：Constant Current、Constant Power) |
|||
|
Adjustment Accuracy |
≤1 % |
|||
|
Efficiency |
≥80 % |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Power Supply Switch |
DB9Pin Interface |
|||
|
Control Mode: |
|
|||
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||||
|
Customizable Digital Interface Control：485Communication。AlsoCustom232Interface |
||||
|
Display Mode: |
TTL Level Output |
|||
|
Insulation Class |
B level |
|||
|
Protection Class |
IP67 |
|||
|
Protection response time |
1u S |
|||
|
Input |
to HousingElectric resist |
≥20MΩ |
||
|
Output |
||||
|
Input to HousingWithstand Voltage |
2000V/1min |
|||
|
Input to Output Withstand Voltage |
3500V/1min |
|||
|
OperatingEnvironment |
Temperature Degree： |
-35～+45 C |
||
|
Humidity： |
≤85 % |
|||
|
CoolingMethod： |
self so Cooling |
|||
|
Dimensions： |
150*100*82(mm )，Mounting Dimensions：92*142mm |
|||
|
Features |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|||
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||||
|
|
||||
|
Remarks： |
Factory Default Analog Interface |
|||
|
Output for positive Pole Nature DC Voltage |
||||
|
accept Other Parameter of Custom |
||||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|||
|
suitable Field |
Used for need positive Pole type High Voltage of application |
|||
