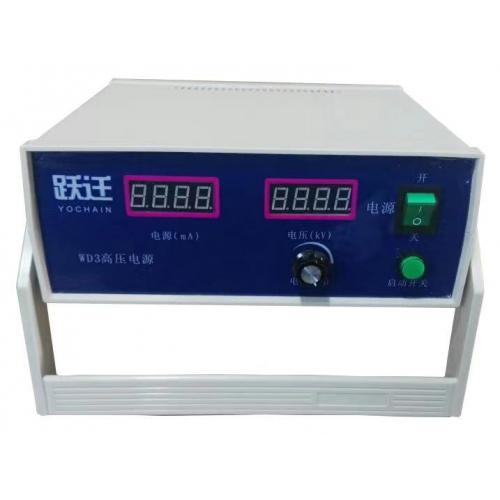

WD3-500W Multi-function High Voltage Power Supply Series

outside type Parameter

meter inch ：185mm*240mm*290mm

Weight ：2000g

Main Technical Parameters

1.Product Name：High Voltage Voltage Stabilized Power Supply(Constant Current Power Supply)

2.Product Model：WD3Series

3.Product Brand：Yochain

4.Input Voltage：AC  220V±10 %

5.Output Parameter

Power：500W(Voltage * Current=500VA)

Voltage(Voltage Stabilized Power Supply)：0-50KV(Series Parameter)

Current(Constant Current Power Supply)：0-500mA(Series Parameter)

Response Speed：≤1m S

6.Output Adjustment：① by Voltage Adjustment Knob Adjustment Output Voltage(Voltage Stabilized Power Supply)

              ② by Current Adjustment Knob Adjustment Output Current(Constant Current Power Supply)

7.OperatingEnvironment

Temperature Degree：-10～+40 C

Humidity： ≤85 %

8.CoolingMethod：Air Cooled
