- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：1KV
- Output current(Max)：200A
|
Main Technical Parameters |
||
|
Product Name |

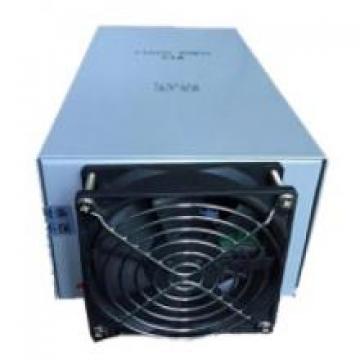

1KWDC Switching Power Supply |
|
|
Product Model |
WT2C |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC220V±10 % |
|
|
Output |
Power: |
1KW |
|
Current: |
200A~1A(Series Parameter) |
|
|
Voltage: |
5V~1KV(Series Parameter)(0~Rated Voltage Adjustable) |
|
|
Wave Type |
positive Pole Nature DC |
|
|
WorkingMode |
Adjustable Voltage Stabilization |
|
|
Adjustment Accuracy |
≤1 % |
|
|
Efficiency |
≥90 % |
|
|
Power factor |
cosΦ≥0.9 |
|
|
Power Supply Switch |
DB9Pin Interface |
|
|
Control Mode: |
|
|
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||
|
AlsoCustomDigital Interface Control：485Communication。232Interface。 |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
0~5V Voltage and Current signal Output |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤85 % |
|
|
CoolingMethod： |
Air Cooled |
|
|
Dimensions： |
320*130*95(mm ) |
|
|
Mounting Dimensions |
191*110(mm) |
|
|
Features : |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||
|
|
||
|
Remarks： |
Output Current Voltage Customizable |
|
|
Factory Default Analog Interface |
||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
|
|
