- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：2KV
- Output current(Max)：500mA
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|
Main Technical Parameters |
||||
|
Product Name |

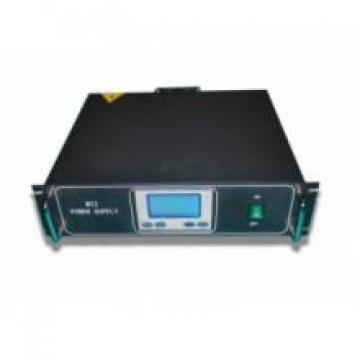

1KWDC High Voltage Impulse Power Supply |
|||
|
Product Model |
WT2-2KV |
|||
|
Product Brand |
Yochain |
|||
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|||
|
Input Voltage： |
AC220V±10 % |
|||
|
Output |
Power: |
1KW |
||
|
Current: |
50mA~500mA |
|||
|
Voltage: |
2KV |
|||
|
Wave Type |
DC |
|||
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|||
|
Adjustment Accuracy |
≤1 % |
|||
|
Efficiency |
≥90 % |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Power Supply Switch |
DB9Pin Interface |
|||
|
Control Mode: |
Electric brain Panel button Control |
|||
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||||
|
Digital Interface Control：485Communication。AlsoCustom232Interface |
||||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||||
|
Display Mode: |
English LCD Display |
|||
|
Insulation Class |
B level |
|||
|
Protection Class |
IP20 |
|||
|
Protection response time |
1u S |
|||
|
Input |
to HousingElectric resist |
≥20MΩ |
||
|
Output |
||||
|
Input to HousingWithstand Voltage |
2000V/1min |
|||
|
Input to Output Withstand Voltage |
3500V/1min |
|||
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
||
|
Humidity： |
≤85 % |
|||
|
CoolingMethod： |
Air Cooled |
|||
|
Dimensions： |
400*95*370(mm ) |
|||
|
Main principle |
generate High can amount of ion bombardment work Piece surface ， will work Piece surface of pollution thinghit drop ， for platingout High mass of film layer Provide front period handle |
|||
|
Features : |
Output Voltage High ， suppress arc can Force strong ，Suitable Environment can Force strong ，Output can amount High |
|||
|
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
||||
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||||
|
|
||||
|
Remarks： |
Factory Default Analog Interface and 485 Digital Interface， negative Pole Nature Voltage |
|||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|||
|
suitable Field |
Used for work Piece Coating front of High Voltage bombardment Cleaningand platingSilicone Oil Protection film 。Also Used for Other DC High Voltage Field |
|||
