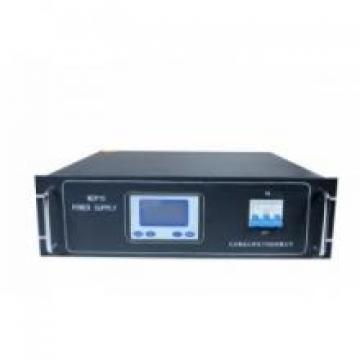

WZP10-DBD-10KW Dielectric Barrier Discharge Atmospheric Plasma CleaningPower Supply Series

Main Technical Parameters

Product Name

10KW-DBD Dielectric Barrier Discharge Plasma CleaningPower Supply Series

Product Model

WZP10-DBD Series

Product Brand

Yochain

Power Supply Type

Fully Digital Controlled Intelligent Power Supply,3 phase 4 Line

Input Voltage：

AC380V±10 %

Output

Power:

10KW(Voltage * Current=10KVA)

Current:

0.2~2A(Series Parameter)

Voltage:

5KV~50KV(Series Parameter)

Frequency

20~50Khz(Automatic Variable Frequency)

Wave Type

Quasi-sine Wave

mode

Current Stabilization Mode

Adjustment Accuracy

≤1 %

Efficiency

≥90 %

Power factor

cosΦ≥0.9

Power Supply Switch

DB9Pin Interface

Control Mode:

Power Supply Panel button Control

AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Multi-function Protection( general Used for Water Flow Protection)

Digital Interface Control：485Communication。AlsoCustom232Interface。Support MODBUS Protocol。

IoT Net WIFI Connection，Remote Net network Monitoring

Display Mode:

English LCD Display

Insulation Class

B level

Protection Class

IP20

Protection response time

1u S

Input

to HousingElectric resist

≥20MΩ

Output

Input to HousingWithstand Voltage

2000V/1min

Input to Output Withstand Voltage

3500V/1min

OperatingEnvironment

Temperature Degree：

0～35 C

Humidity：

≤85 %

CoolingMethod：

Air Cooled

Dimensions：

480*135*380(mm )

Features :

able in Large Gas pressure below via resist block layergenerate stable fixed of splendidly Light Discharge，Working Efficiency High ， Load Suitable Range Wide，5KVSuitable Load Capacitor400~4000PF，

Discharge Distance can reach 3mm。10KVSuitable Load Capacitor200~2000PF，Discharge Distance can reach 5mm。30KVSuitable Load Capacitor100~1000PF，

Discharge Distance can reach 15mm。50KVSuitable Load Capacitor50~500PF，Discharge Distance can reach 30mm。

Circuit adopt Module chemical design ，Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable，DebuggingingRepair Convenient。

Remarks：

Factory Default Analog Interface

Fault Prompt

Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。

suitable Field

response Used for Large Gas plasma Cleaning 、Etching 、 plasma plating 、 plasma coating 、 plasmagray chemical and surface modify Nature etc application 。 via its handle ， able improve Materials surface of moisten wet can Force， make multi Type Materials able perform coating 、 platingetc Operation， increase strongviscosity combine Force、 bondingForce， meanwhile remove has Machine pollutant 、 oil pollution orgrease

plasma CleaningFeatures

·  can more Flexibleground Operation， simple thenground change handle Gas body of Type type and handle program 。

·  not can to Operation person member of body body cause any what damage harm 。

·  its Cost for plasma handle Method come say is micro not foot therapy of 。　

plasma CleaningMachine Application Range

·  semiconductor 、 micro Electronic

·  integrated Circuit Electronic Industry

·  Vacuum Electronic Industry

·  textile Industry

·  auto vehicle Industry

·  navigate empty aerospace

·  biological work process

·  medical science medical

·  Solar Battery Board

·  Plastic Rubber

·  Scientific Research open emit

·  archaeology science
