- Input voltage：380V
- Output power：20KW
- Output voltage(Max)：5KV
- Output current(Max)：4A

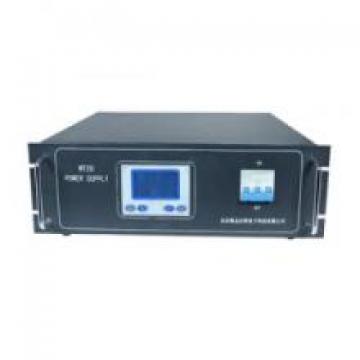

5KV 20KW high voltage DC bombardment coating power supply
|
Name |
Direct current high voltage bombardment power supply |
|
|
Items No. |
WT20-JS-HJ-DC-20KW |
|
|
Type |
CNC intelligence power supply |
|
|
Input Voltage |
AC380V±10% |
|
|
Output |
Power |
20KW |
|
|
Current |
0.4A~4A |
|
|
Voltage |
5KV |
|
|
Wave form |
Direct current |
|
|
Mode |
Custom constant voltage, constant current, constant power |
|
Regulation Precision |
≤1% |
|
|
Efficiency |
≥90% |
|
|
Power Factor |
cosΦ≥0.9 |
|
|
Display Mode |
Chinese-English LCD display |
|
|
Display Content |
Working state, output voltage, output current, set value |
|
|
Output Protection |
Output overvoltage, output overcurrent and output offset |
|
|
Input Protection |
Output overvoltage, Output undervoltage, input overcurrent, open phase |
|
|
Safety Protection |
Grounding protection, leakage protection, external control protection, lightning protection, overheating |
|
|
Insulation Class |
B |
|
|
Protect Grade |
IP20 |
|
|
Protection Response Time |
1uS |
|
|
Temperature |
0~35℃ |
|
|
Humidity |
≤80% |
|
|
Cooling mode |
Air-cooling |
|
|
Dimensions |
480*135*380(mm) |
|
