- Input voltage：380V
- Output power：10KW
- Output voltage(Max)：30KV
- Output current(Max)：30mA
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|
Main Technical Parameters |
||
|
Product Name |

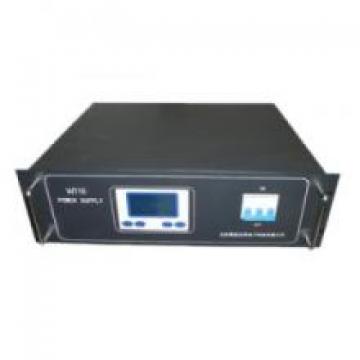

High Voltage Power Supply |
|
|
Product Model |
WT10-30KV |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC380V±10 % |
|
|
Output |
Power: |
10KW |
|
Current: |
0~300mA |
|
|
Voltage: |
0~30KV |
|
|
Wave Type |
negative Pole Nature DC |
|
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|
|
Adjustment Accuracy |
≤1 % |
|
|
Efficiency |
≥90 % |
|
|
Power factor |
cosΦ≥0.9 |
|
|
Power Supply Switch |
DB9Pin Interface |
|
|
Control Mode: |
Power Supply Panel button Control |
|
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||
|
can CustomDigital Interface Control：485Communication。232Interface |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
English LCD Display |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤85 % |
|
|
CoolingMethod： |
Air Cooled |
|
|
Dimensions： |
480*135*380(mm) |
|
|
Load Special Nature |
Electric Resistive Load，Electric Capacitive Load，Negative Resistance Load，Nonlinear Load，Allows Load Short Circuit |
|
|
Features : |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||
|
|
||
|
Remarks： |
Output Voltage Minute positive Pole Nature and negative Pole Nature |
|
|
Factory Default Analog Interface， negative Pole Nature Voltage |
||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|
