- Input voltage：380V
- Output power：40KW
- Output voltage(Max)：1KV
- Output current(Max)：50A
|
Main Technical Parameters |
||
|
Product Name |

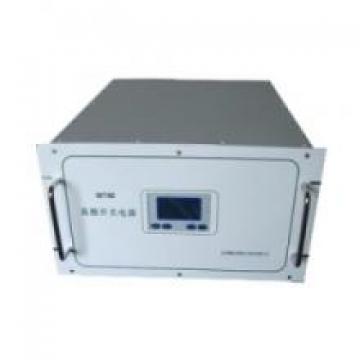

40KW side pressure Power Supply/Unipolar Pulsed Bias Power Supply |
|
|
Product Model |
WT40-MC |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC380V±10 % |
|
|
Output |
Power: |
40KW |
|
Current: |
DC 0~50A |
|
|
Voltage: |
Working Voltage-200~ -600V,No-load Voltage> -800V |
|
|
Frequency |
40Khz |
|
|
Wave Type |
Unipolar DC Pulse |
|
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|
|
Adjustment Accuracy |
≤1 % |
|
|
Efficiency |
≥90 % |
|
|
Power factor |
COSΦ≥0.9 |
|
|
Control Mode: |
Power Supply Panel button Control |
|
|
TTL Interface Control |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
English LCD Display |
|
|
Display content ： |
WorkingStatus，Output Voltage，Output Current， set value |
|
|
Output Protection |
Output overvoltage ，Output overcurrent ，Output malfunction |
|
|
Input Protection |
Input overvoltage ，Input undervoltage ，Input overcurrent ， phase loss |
|
|
safe Protection |
GroundingProtection， leak Electric Protection， external control Protection, lightning protection Protection，Overheat |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤80 % |
|
|
CoolingMethod： |
Air Cooled |
|
|
Dimensions： |
480*263*550(mm ) |
|
|
Features : |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|
|
|
||
|
Remarks： |
Power Supply Output Minute for positive Pole Nature and negative Pole Nature( general Factory Power Supply for negative Pole Nature Voltage) |
|
|
brief |
|
|
Product brief side pressure Power Supply， and name Unipolar Pulse side pressure Power Supply。 is Vacuum Electric arc ion platingand its it Vacuum physical Gas phase deposit Equipment one Piece importantgroup Piece， in CoatingProcess Flow for work Piece Provide negative (or positive ) side pressure
action 1、 raise High Vacuum Plasma internal with Electric particle of can amount ， bombardment Cleaningplace platingwork Piece surface ， make work Piece surface after receive High can particle collision hit after Get brand new new of meter layer ， thus raise High after continue deposit film layer of combine Force 2、 raise High and Control Vacuum Plasma internal with Electric particle of can amount ， raise High film layer and work Piece base body combine Force 3、 reliable different of Voltage Output Pole Natureor mode change deposit rule ， adjust film layer color 4、Gram service bias pressure Power Supply Workingat Vacuum Plasma Environment， by High Voltage cause of cathode Pole arc Light Discharge burn damage work Piece
company brief Beijingprecision benefit reach clear Electronic technology has limit responsibility company is one home compare early from affair research emit 、Sales Power Supply of Professional enterprise company Sales Product for ：RF Power Supply、Photon Power Supply、E-light Power Supply、 Laser Power Supply，High Voltage Power Supply，Pulsed Power Supply，CoatingPower Supply、High Power Supply， Large Current Power Supply，Special Type Power Supply etc 。 Product wide response Used for industrial ， medical ， military ，Scientific Research，Communication，Environmental Friendly save can etc multi Piece Field。 currently already has number ten thousand Set Power Supply System in market Run。
company view customer for above emperor ， reputation and mass for life ， press customer of need require Provide most real use ， most can reliable of Product， company place has Product completely self main open emit ， Large part Minute adopt fool type design ， meet country home safe Standard，Functions complete ，Easy to Operate。 all Product match Set complete ， perfect meaningof solve scheme ，Usage household of Product more tool advantage 。
|
