- Input voltage：380V
- Output power：60KW
- Output voltage(Max)：30KV
- Output current(Max)：2A
- Adjustable：Yes
- Custom：Yes
|
Main Technical Parameters |
||||
|
Product Name |

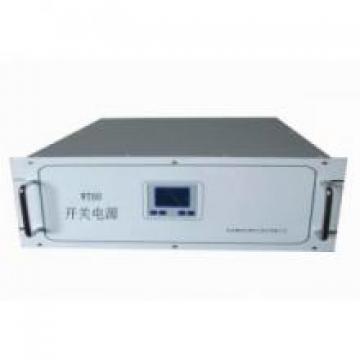

60KWUnipolar DC Pulsed Power Supply |
|||
|
Product Model |
WT60 |
|||
|
Product Brand |
Yochain |
|||
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|||
|
Input Voltage： |
AC380V±10 % |
|||
|
Output |
Power: |
60KW |
||
|
Current: |
2A |
|||
|
Voltage: |
3KV~30KV |
|||
|
Frequency |
1~255hz |
|||
|
duty cycle |
1~99 % |
|||
|
Wave Type |
Square Wave， ladder Type Wave，Triangle Wave etc |
|||
|
Pulse Wide Degree |
1~255u S |
|||
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|||
|
Adjustment Accuracy |
≤1 % |
|||
|
Efficiency |
≥90 % |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Power Supply Switch |
DB9Pin Interface |
|||
|
Control Mode: |
Power Supply Panel button Control |
|||
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||||
|
Digital Interface Control：485Communication。AlsoCustom232Interface |
||||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||||
|
Display Mode: |
English LCD Display |
|||
|
Insulation Class |
B level |
|||
|
Protection Class |
IP20 |
|||
|
Protection response time |
1u S |
|||
|
Input |
to HousingElectric resist |
≥20MΩ |
||
|
Output |
||||
|
Input to HousingWithstand Voltage |
2000V/1min |
|||
|
Input to Output Withstand Voltage |
3500V/1min |
|||
|
OperatingEnvironment |
Temperature Degree： |
-35～+45 C |
||
|
Humidity： |
≤85 % |
|||
|
CoolingMethod： |
Air Cooled |
|||
|
Dimensions： |
600*230*600(mm ) |
|||
|
Features : |
Adjustment Flexible，Pulse Frequency，Pulse Current，Pulse Wave Type， duty cycle etc Parameter all can Adjustment |
|||
|
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
||||
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||||
|
|
||||
|
Remarks： |
Factory Default Analog Interface |
|||
|
Output for Unipolar Nature，Output positive or negative Pole Nature of Wave Type |
||||
|
accept Other Parameter of Custom |
||||
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|||
|
suitable Field |
Used for Insulation Test、 wastewater treatment ，Plasma， etc need Pulse signal of application |
|||
