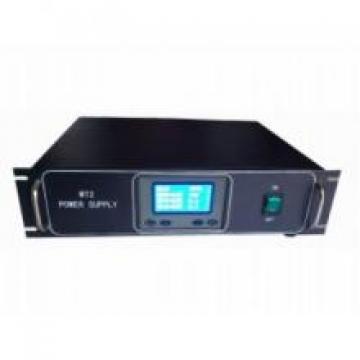

120KV High Voltage Power Supply WT2-120KV-600W Special High Voltage Switching Power Supply

Main Technical Parameters

Product Name

60KV/1KWHigh Voltage Power Supply

Product Model

WT2-60KV

Product Brand

Yochain

Power Supply Type

Fully Digital Controlled Intelligent Power Supply

Input Voltage：

AC220V±10 %

Output

Power:

600W

Current:

0~5mA

Voltage:

0~120KV

Wave Type

negative Pole Nature DC

mode

custom Constant Voltage、Constant Current、Constant Power

Adjustment Accuracy

≤1 %

Efficiency

≥90 %

Power factor

cosΦ≥0.9

Power Supply Switch

DB9Pin Interface

Control Mode:

Power Supply Panel button Control

AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection)

Digital Interface Control：485Communication。AlsoCustom232Interface

IoT Net WIFI Connection，Remote Net network Monitoring

Display Mode:

English LCD Display

Insulation Class

B level

Protection Class

IP20

Protection response time

1u S

Input

to HousingElectric resist

≥20MΩ

Output

Input to HousingWithstand Voltage

2000V/1min

Input to Output Withstand Voltage

3500V/1min

OperatingEnvironment

Temperature Degree：

-35～+45 C

Humidity：

≤85 %

CoolingMethod：

Air Cooled

Dimensions：

400*95*370(mm )

Load Special Nature

can connect Electric Resistive Load，Electric Capacitive Load，Negative Resistance Load，Nonlinear Load，Allows Load Short Circuit。

Features

Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable

Circuit adopt Module chemical design ，DebuggingingRepair Convenient。

Remarks：

Factory Default Analog Interface and 485 Digital Interface

Output Voltage Minute positive Pole Nature and negative Pole Nature

accept Other Parameter of Custom

Fault Prompt

Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
