Input voltage：220V/110V
-
Output power：1KW
-
Output voltage(Max)：10KV
-
Output current(Max)：100mA
-
Custom：Yes
Warm prompt:
Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
Main Technical Parameters
Product Name

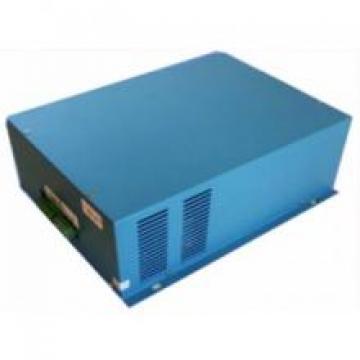

1KWDC High Voltage Power Supply
Product Model
WJE2Series
Product Brand
Yochain
Input Voltage
AC220V±10 % 110V(Order)
|
|
Output
|
Power
1KW
Current:
DC 100mA(max)
Voltage:
DC 10KV(max)
Response Speed
≤1m S
Light couple Interface Control
DC(5±2V)
/ out Light
|
Power Adjustment
|
1. by Electric position Device Adjustment Power Supply of Output Current
|
2. by PWM ( amplitude value for TTL Electric flat )Control
Power Supply of Switch
by Manual Button Controlor Light couple Interface Control
OperatingEnvironment
Temperature Degree：
-10～+40 C
Humidity：
≤85 %
CoolingMethod：
Air Cooled
Dimensions：
280*225*113(mm )
|
suitable Field
|
wastewater treatment ， give water handle ， chemical work Field strongOxidation handle ， smoke Gas denitration ， food system medicine empty between sterilization
