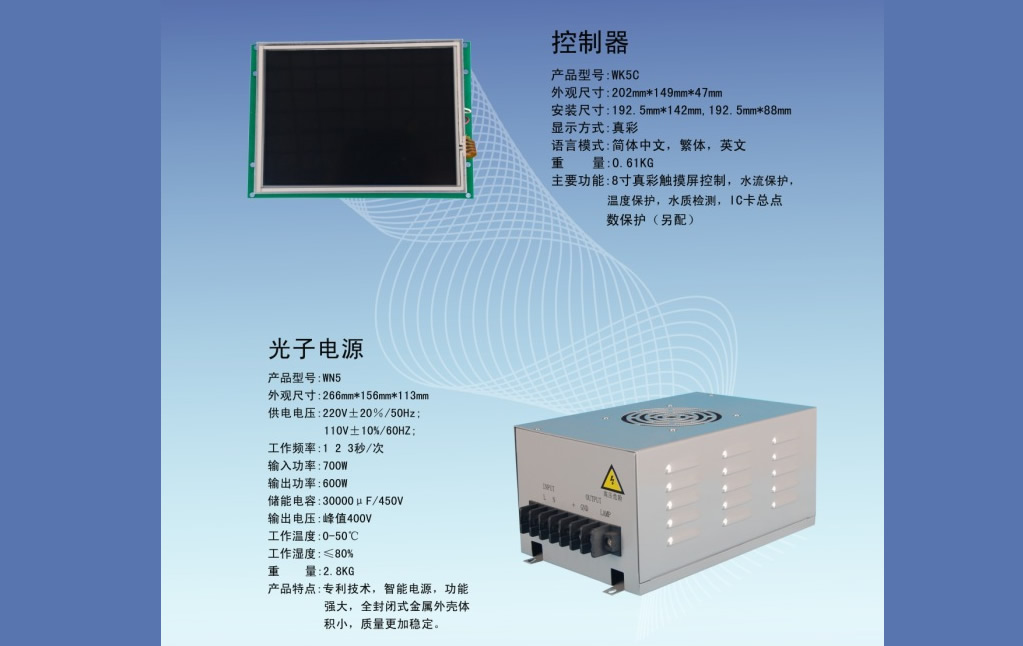

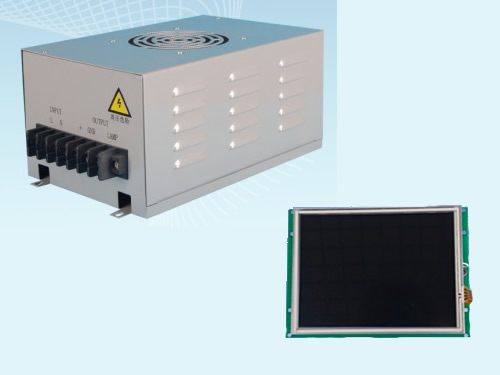

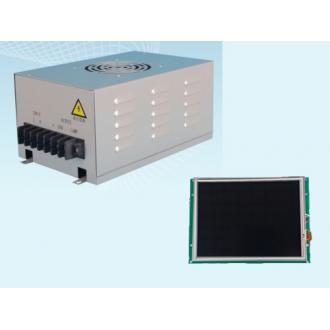

WK5C-N5Power Supply System Including ：Touch Screen Controller WK5C+600WPhoton Power Supply WN5





Touch Screen Controller WK5C

Main Parameter：

Panel meter inch：228mm*168mm

Mounting Dimensions：218mm*156mm

Display window port ：172mm*129mm

Display Dot Matrix：640 point *480 point

3.Display Mode：True Color

4. Language Mode： simple body text ， complex body text ，English(Other Custom)





Main Functions:8.4inch True Color LCD Display，Touch Screen Control； water flow 、 over Temperature Protection；Total Point Record，10Type can select back view draw face

Features： this product tool prepare 3-in-1System of select draw face ， able meanwhile Control Photon Power Supply,RF Power Supply,Eyebrow Tattoo Remover Power Supply three Unit Power Supply， person Nature chemical design ， makeget you of Operation More then fast 。

Match Power Supply：WN2Photon2-in-1，WS2 can Drive IC Card，E-light Power Supply

600W IP L Photon Power Supply WN5

1、Main Parameter

supply Electric Power Supply：220V±20％/50Hz，60Hz;   110V±10 %    60HZ;
Input Power：700W
Output Power：600W

Energy Storage Capacitor：30000μF/450V
most Large WorkingCurrent： average 4A， peak 20A
Output Current： peak 200A~400A
Output Voltage： peak 430V，Energy Storage Capacitor peak Voltage

Dimensions，230mm*165mm*120mm

Heat Dissipation mode ，Air Cooled+Heat Dissipation Sheet







2、Product Features:

1.Product Volume Small ， cloth bureau combine manage ， in Installation and Repair over process also non common Simple， province h province Force

2. seal close type design ； safe







Remarks：Xenon Lamp suggestion Usage hit between distance in 55 above of Lamp， avoid Lamp of damage bad

         can and K5B,K4,K8Controller even can match Set, can accordingto User of lovegood selfgo select
