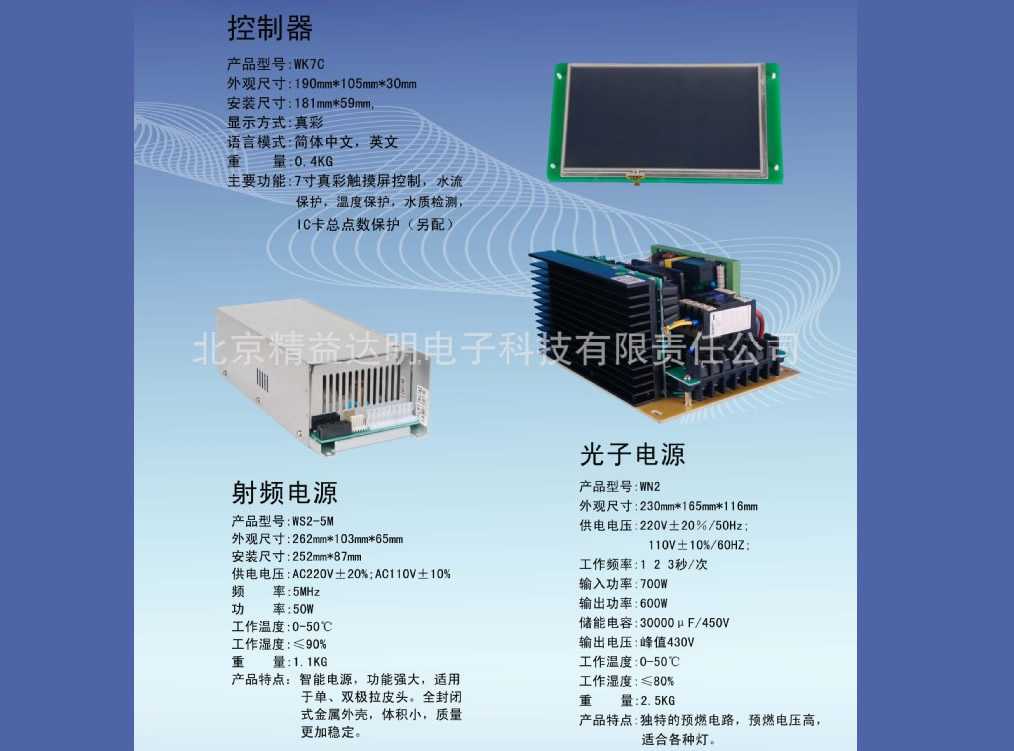

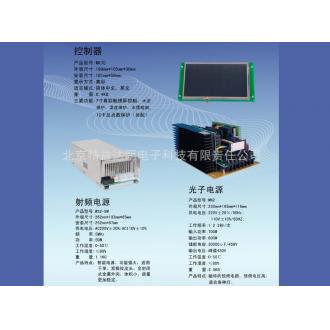

WK7C- EC Power Supply System Including ：
Touch Screen Controller WK7C+5MHZ 50W
RF Power Supply WS2-5MX+800W
IP L Photon Power Supply WN2( already from original first of 600W Upgrade to 800W)
Touch Screen Controller WK7C
--------------------------------------------
5MHZ 50W
RF Power Supply(Electric Wave LiftingPower Supply)WS2-5MX
1.Main Parameter
(1)Input Voltage：AC220±20 % /110V±10 % (Order)
(2) most High Output Power：50W
(Adjustable)
(3)Operating Frequency for 5M Hz
(4)OperatingEnvironment：Temperature Degree(—10~40)Degree
Humidity：90 % below
(5)Control： has three Type Control Mode：
A． use this company Controller Control
B． by data Interface by External Equipment Control
C． use pin step Switch and Electric position Device use Power Supply self with of Controller Control
2. meter inch
(1)Dimensions：262mm*103mm*65mm
(2)Mounting Dimensions：153mm＊87mm
3.Features
(1)Volume Small ，Functions strong ，Easy to Operate
(2Power Supply Protection design /font>
----------------------------------------------------------------
600W IP L Photon Power Supply
WN2
1、Main Parameter
supply Electric Power Supply：220V±20％/50Hz，60Hz; 110V±10 %
60HZ;
Input Power：700W
Output Power：600W
Energy Storage Capacitor：30000μF/450V
most Large WorkingCurrent： average 4A， peak 20A
Output Current： peak 200A~400A
Output Voltage： peak 430V，Energy Storage Capacitor peak Voltage
Dimensions，230mm*165mm*116mm
2、Product Features:
Pre-ignition Circuit，Pre-ignition Voltage High ， fit multi Type Lamp
can and multi Type Controller match Set, can accordingto User of lovegood selfgo select.
