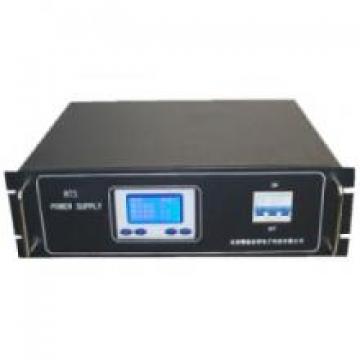

WT5Magnetron Power Supply3KW Magnetron Tube Driver Microwave Power Supply

Main Technical Parameters

Product Name

3KWMagnetron Tube Driver Power Supply( micro Wave Head Driver Power Supply、Microwave Power Supply、Magnetron Power Supply、Magnetron Tube Driver Power Supply)

Product Model

WT5

Product Brand

Yochain

Power Supply Type

Fully Digital Controlled Intelligent Power Supply

Input Voltage：

AC380V±10 %

Output

Power:

5KW

Current:

1A

Voltage:

5KV

mode

custom Constant Voltage、Constant Current、Constant Power

Lamp wire

Voltage:

3.3V

Current:

20A

Adjustment Accuracy

≤1 %

Efficiency

≥90 %

Control Mode:

Power Supply Panel button Control

Analog Interface：External Adjustment Output(Voltage,Current)，TestingStatus，Working . wait Machine Fast cut change ，Analogamount collect

Digital Interface： RS485 Communication Interface， can achieve fact Monitoring , Parameter adjust ,Status cut change 。

IoT Net WIFI Connection，Remote Net network Monitoring

Display Mode:

English LCD Display

Display content ：

WorkingStatus，Output Voltage，Output Current， set value

Output Protection

Output overvoltage ，Output overcurrent ，Output malfunction

Input Protection

Input overvoltage ，Input undervoltage ，Input overcurrent ， phase loss

safe Protection

GroundingProtection， leak Electric Protection， external control Protection, lightning protection Protection，Overheat

Insulation Class

B level

Protection Class

IP20

Protection response time

1u S

Input

to HousingElectric resist

≥20MΩ

Output

Input to HousingWithstand Voltage

2000V/1min

Input to Output Withstand Voltage

3500V/1min

OperatingEnvironment

Temperature Degree：

0～35 C

Humidity：

≤85 %

CoolingMethod：

Air Cooled

Dimensions：

400*95*370(mm )

Mounting Dimensions：

460*60(mm)

Features :

Volume Small ，Weight light ， structure Simple，Easy to Operate，Functions strong Large

adopt Module chemical design ，Maintenance Convenient

start easy ，Working Efficiency High ，Stable and Reliable

tool prepare External Control System achieve (Analog ) signal collect ，External Adjustment，Working . wait Machine Status cut change 。(Digital) RS485 Communication Interface

Match Magnetron tube ：

Driver3KWMagnetron tube ， such as 2M285Magnetron tube

Fault Prompt

Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
