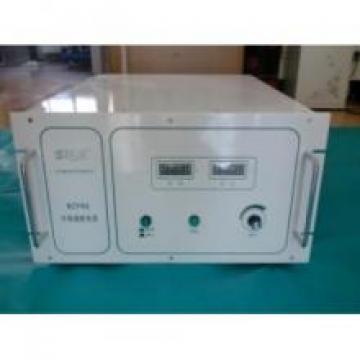

40KW Medium Frequency Magnetron SputteringCoatingPower Supply WZP40L

Main Technical Parameters

Product Name

40KWMedium Frequency Magnetron SputteringCoatingPower Supply WZP40 L

Product Model

WZP40 L

Product Brand

Yochain

Power Supply Type

Fully Digital Controlled Intelligent Power Supply

Input Voltage：

AC380V±10 %

Output

Power:

40KW

Current:

0~50A

Voltage:

Working Voltage200~800V,Maximum Voltage> 1KV

Frequency

40Khz

Wave Type

Quasi-sine Wave

mode

Constant Current

Adjustment Accuracy

≤1 %

Efficiency

≥90 %

Power factor

cosΦ≥0.9

Power Supply Switch

DB9Pin Interface

Control Mode:

AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection)

Digital Interface Control：485Communication。AlsoCustom232Interface

IoT Net WIFI Connection，Remote Net network Monitoring

Display Mode:

LED number Yard Display

Insulation Class

B level

Protection Class

IP20

Protection response time

1u S

Input

to HousingElectric resist

≥20MΩ

Output

Input to HousingWithstand Voltage

2000V/1min

Input to Output Withstand Voltage

3500V/1min

OperatingEnvironment

Temperature Degree：

0～35 C

Humidity：

≤80 %

CoolingMethod：

Water Cooled

Dimensions：

480*230*550(mm )

Features :

Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable

Circuit adopt Module chemical design ，DebuggingingRepair Convenient。

able platingInsulation film layer ， notgenerate Electric arc ， Load Suitable Range Wide

Remarks：

Factory Default Analog Interface

Fault Prompt

Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。
