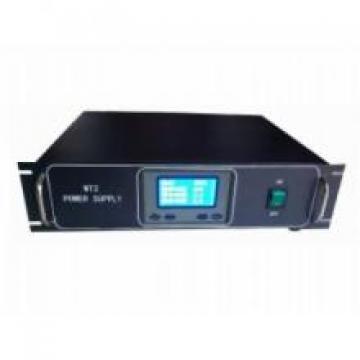

1KW Magnetron Power Supply Microwave Power Supply Magnetron Tube Driver Power Supply

• Input voltage：220V
• Output power：1.2KW
• Output voltage(Max)：5KV
• Output current(Max)：300mA

Product Introduction
Magnetron Power Supply、Magnetron Tube Driver Device、Magnetron tube HeatingPower Supply、Magnetron tube Voltage Transformation Device
Brand/Model：WT2 Magnetron Power Supply/Microwave Sulfur Lamp High Voltage Power Supply/ micro Wave Magnetron tube Head/ micro Wave Head/Magnetron Power Supply/Microwave Power Supply

suitable Magnetron tube Model： loose below ：2M210　2M167B　2M244 2M236 2M261 2M291 2M292
　　　　　　　　　　 three star ：OM75P(31) OM75P(11)
　　　　　　　　　　 L G:2M226　2M246

Input Voltage：AC220(V)

Output Power：1200(W)
Output Voltage：5000V(V)

1.0KW Magnetron tube use High Voltage Power Supply Technical Index
Power Supply Switch tube Temperature Liter：25Degree
magnetic heart most High Temperature Liter：20Degree
Ambient Temperature：25Degree
Test strip Piece：AC175V / AC280V
Working Efficiency>96.0％ 4Small h after Test result
CoolingMethod：Air Cooled
Magnetron tube Current:300mA
Power Supply Rated Power：1200W
AC Input Range：AC Start Voltage:160V
positive common Working Voltage Range：180V－250V
Over-voltage Protection value ：＞AC260V
WorkingAmbient Temperature：-20 C －＋55 C
Output DC High Voltage：1000V－4500V
User adjust Current Range：30 mA --300mA
Control Mode:0V-5V (Analogamount Control)
Output DC Current Temperature drift :±2 % 24h
High Voltage Output Special Nature：High Voltage Output Allow Continuous multi second short Road， however with immediately repeat Start；

Load Ultra over 350mAPower Supply Protection and heavy new Start。
over Temperature Protection：Switch tube 、Rectification bridge Temperature Degree＞55Degree
High Voltage slow Liter time ：10Second
AC break Electric restart time ：20Second
whole Power Supply meter inch:400×95×370mm
Filament Power Supply:3.3V/10A
Switching Power Supply：Efficiency72％；Voltage Application Range：AC160V－250V
Constant Current Range：6－10A Constant Current Accuracy2％
Current slow Liter time ：13-15Second up start Current Line Nature to 10A
Lamp wire open Road High Voltage Generation Device Stop Working ； Lamp wire Current10A

Power Supply Features:
1) AC/DC Conversion Efficiency reach 97 % .
2)Output can direct connect toground short Road,Power Supply not can damage bad
3)Output Power for Rated value ,Power store prepare 50 %
4)Ambient Temperature reach 55 C can Continuous Working, actual Ambient Temperature Protection can Setting
