- Input voltage：220V/110V
- Output power：1KW
- Output voltage(Max)：12KV
- Output current(Max)：100mA
- Custom：Yes

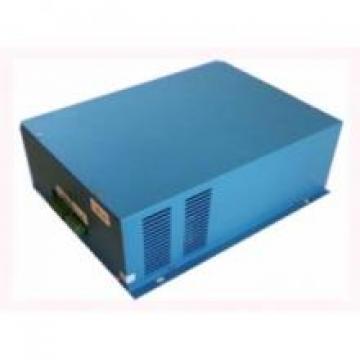

1000WMedium Frequency Ozone Generator Power Supply:
1.Frequency Variable,Power Adjustable,Automatic adjust Wide,Fault Protection,Protection Output.
2.Output Frequency：25KHZ.
3.Output Waveform：Sine Wave
4.Input Voltage220V，Continuous WorkingCurrent2.5A
5.Power tube Heat Dissipation:Air Cooled.
6.Input Voltage：AC 220V±10 % ；AC 110V(Order)
7.Output Voltage：6~12KV。
8. most Large Output Current： 100mA
9.Response Speed：≤1m S
10. Light couple Interface Control：DC(5±2V)
11.OperatingEnvironment：Temperature Degree(-10～40) C Humidity：≤85 %
12.Power Supply Power Adjustment：0~5V to response 0~1000W
13.Power Supply of Switch： by Manual Button Controlor by Light couple Interface Control
14.Dimensions：280*225*113mm
15.Ozone Generation Device Used for： wastewater treatment ， give water handle ， chemical work Field strongOxidation handle ， smoke Gas denitration ， food system medicine empty between sterilization ， etc Field。
