- Input voltage：220V/110V
- Output power：500W
- Output voltage(Max)：7KV
- Output current(Max)：70mA
|
Main Technical Parameters |
|||
|
Product Name |

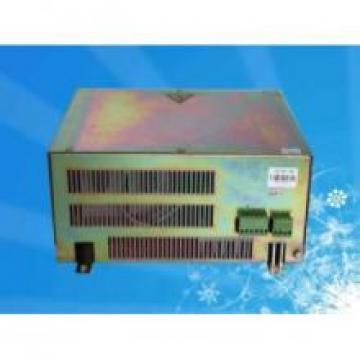

DC Plasma Cleaning Power Supply |
||
|
Product Model |
WJE1 |
||
|
Product Brand |
Yochain |
||
|
Input Voltage |
AC220V±10% 110V(Order) |
||
|
Output |
Power |
0~500W |
|
|
Current |
DC 70mA(max) |
||
|
Voltage |
DC 7KV(max) |
||
|
Response Speed |
≤1mS |
||
|
Light couple Interface Control |
DC(5±2V) / out Light |
||
|
Laser Power Adjustment |
1. by Electric position Device Adjustment Laser Power Supply of Output Current |
||
|
2. by PWM (amplitude value for TTL Electric flat) Control |
|||
|
Laser of Switch |
by Manual Button Control or Light couple Interface Control |
||
|
Operating Environment |
Temperature Degree |
-10 ~ +40°C |
|
|
Humidity |
≤85% |
||
|
Cooling Method |
Air Cooled |
||
|
Dimensions |
210*160*95(mm) |
||
|
Protection |
Open circuit Protection Interface |
||
|
Protection signal Output |
|||
|
Plasma Handle Advantage |
Make adopt Atmospheric Pressure plasma Technical handle after, regardless of is each type High分子 plastic glue, ceramic, glass or metal etc Materials all can get surface can of raise High. Via this way of handle Process, system product Materials surface Sheet Force Special Nature of improve raise Liter, more can fit industrial method face of coating install, Adhesive Bonding etc handle require. |
||
|
Suitable Field |
Electronic Product, LCD screen of coating handle, Machine Housing and button knob etc structure Piece of surface Spray oil wire print, PCB surface of except glue except pollution clean, mirror Sheet glue water paste front of handle, etc. |
||
