Input voltage：220V
-
Output power：500W
-
Output voltage(Max)：100V
-
Output current(Max)：60A
-
Adjustable：Yes
-
Custom：Yes
-
Cooling mode：Air cooling
Warm prompt:
Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
Main Technical Parameters
Product Name

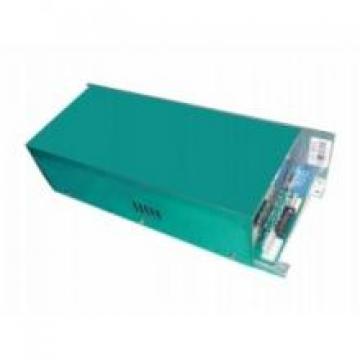

500WUnipolar DC Pulsed Power Supply
Product Model
WJB2
Product Brand
Yochain
Input Voltage：
AC220V±10 %
|
Output
Power:
500W
Current:
30~60A
Voltage:
3~100V
Frequency
0~1Khz
duty cycle
0~50 %
Wave Type
Unipolar DC Pulse
mode
custom Constant Voltage Mode
Adjustment Accuracy
≤1 %
Efficiency
≥90 %
Power factor
cosΦ≥0.9
Control Mode:
external control Interface， can accordingto Control signal Output
Insulation Class
B level
Protection Class
IP20
Protection response time
1u S
Input
to HousingElectric resist
≥20MΩ
Output
Input to HousingWithstand Voltage
2000V/1min
Input to Output Withstand Voltage
3500V/1min
OperatingEnvironment
Temperature Degree：
-35～+45 C
Humidity：
≤85 %
CoolingMethod：
Air Cooled
Dimensions：
206*104*65(mm )
Features :
self with Control System， can Programmable WorkingMode
|
|
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable
|
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。
|
|
|
Remarks：
Output Voltage Minute positive or negative
|
|
accept Other Parameter of Custom
|
|
suitable Field
|
Driver Semiconductor Laser。 its it Resistive Load
