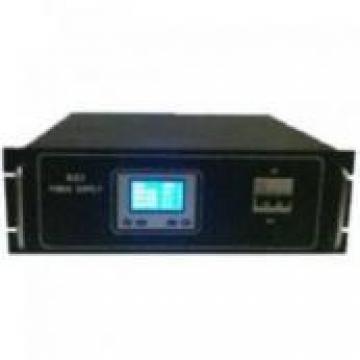

Large Power Pulsed Laser Power Supply WJE3-YAG

Main Technical Parameters

Product Name

High Power Pulsed Laser Power Supply

Product Model

WJE3-YAG

Product Brand

Yochain

Input Voltage：

AC380V±10 % 220V( need Custom)

Output

Current:

2KA

Voltage:

DC 40KV

Frequency:

40~100K Hz(Pulse Frequency Customizable)

Pulse Wide Degree

300u S

mode

custom Constant Voltage、Constant Current、Constant Power

Response Speed

≤1m S

Light couple Interface Control

DC(5±2V) / out Light

Laser Power Adjustment

1. by Controller Adjustment Laser Power Supply of Output Current

2. by PWM ( amplitude value for TTL Electric flat )Control

Laser of Switch

by Manual Button Controlor by Light couple Interface Control

OperatingEnvironment

Temperature Degree：

-10～+40 C

Humidity：

≤85 %

CoolingMethod：

Air Cooled

Dimensions：

380*480*135(mm )

Mounting Dimensions

70*455(mm)

Features

this Machine with has Control Interface， able Connection count calculate Machine etc Control Equipment

make Laser Frequency Special Naturegood ， emit Light Efficiency High

Over-current Protection and no-load Protection， let you Usage more safe more Discharge heart 。

pre Electric from Functions can select ， this way can most Large limit Degree extend LongLaser of Lifetime， raise High whole Machine Nature can accurate

start easy ， emit Light Efficiency High

match prepare

this Power Supply Usage12Piece100u F Laser Capacitor, every Second Output1，2，3 second 。 meanwhile Driver2 support Lamp。Output Power2~5KW。

Used for Large Power Double PumpYAG exc Light System。Also Usage1Piece100u F of Laser Capacitor，Output50Hz of Frequency

suitable Field

Main Used for exc Light Cutting 、Engraving 、Welding 、Markingetc 。 exc Light ProcessingMachine is Laser must not can few of importantgroup become part Minute。 it of Power and Stability to Laser of phase response Nature can has arrive direct connect of influence 。
