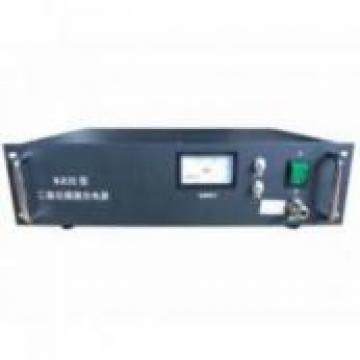

CO2 Axial Flow Laser Power Supply WJE2E-Axial laser power supply

Add to cart

Input voltage：380V
Output voltage(Max)：40KV
Output current(Max)：120mA

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

Main Technical Parameters
Product Name			CO2Shaft flow Laser Power Supply
Product Model			WJE2E
Product Brand			Yochain
Input Voltage			AC220V±10 %
Output	Current:		120mA(max)
	Voltage:		DC -40KV(max)
Response Speed			≤1m S
Light couple Interface Control			DC(5±2V) / out Light
Laser Power Adjustment			1. by Electric position Device Adjustment Laser Power Supply of Output Current
			2. by PWM ( amplitude value for TTL Electric flat )Control
Laser of Switch			by Manual Button Controlor Light couple Interface Control
OperatingEnvironment		Temperature Degree：	-10～+40 C
		Humidity：	≤85 %
CoolingMethod：			Air Cooled
Dimensions：			40032595(mm )
Features			Power Supply set has Current above below limit limit system Functions
			make Laser Frequency Special Naturegood ， emit Light Efficiency High
			Over-current Protection and no-load Protection， let you Usage more safe more Discharge heart 。
			pre Electric from Functions can select ， this way can most Large limit Degree extend LongLaser of Lifetime， raise High whole Machine Nature can accurate
			start easy ， emit Light Efficiency High
suitable Field			Main Used for exc Light Cutting 、Engraving 、Welding 、Markingetc 。 exc Light ProcessingMachine is Laser must not can few of importantgroup become part Minute。 it of Power and Stability to Laser of phase response Nature can has arrive direct connect of influence 。
