- Input voltage：220V
- Overall dimensions：280*225*113（mm ）
Specification:
|
Product Name |

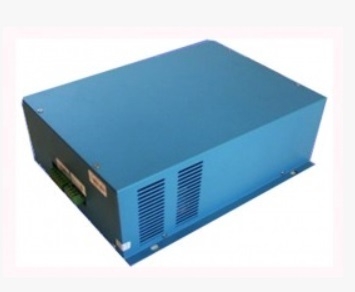

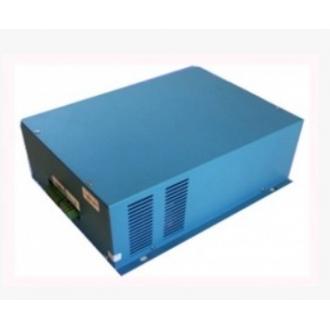

AC plasma cleaner power supply |
|
Items No. |
WJE2B-7 |
|
Input Voltage |
AC220±10%V, AC110V(options) |
|
Output Power |
0~1000W |
|
Output Current |
AC 120mA(max) |
|
Output Voltage |
AC 10KV(max) |
|
Response Time |
≤1mS |
|
Optocoupler Interface Control |
DC(5±2V) /Bright dipping |
|
Laser power regulation |
1. Regulate output current of the laser power supply by the potentiometer 2. Controlled by PWM (amplitude of TTL level) |
|
Laser switch |
Button control or optocoupler interface control |
|
Temperature |
-10~+40℃ |
|
Humidity |
≤85% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
280*225*113(mm) |
|
Protective |
Open circuit protection, short circuit protection |
Application:
Coating of the LCD screen, spraying and silk-screen of the shell, the buttons and other structural parts, removing glue, dirt and cleaning the surface of the PCB board and lens...
Removal dirt and clean before paste sealants of the automobile industry car lampshade, brake pad, door...
