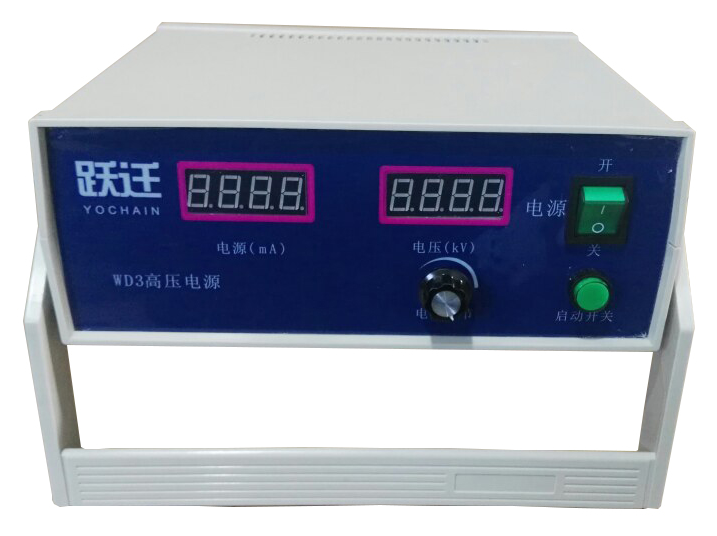

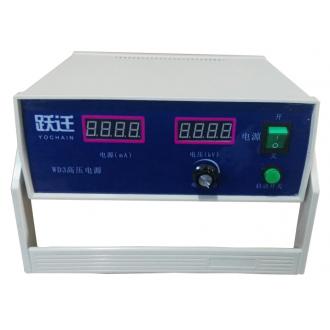

WD3 Stabilized Voltage Power Supply / Constant Current Power Supply

• Input voltage：220V
• Output power：500W
• Output voltage(Max)：30KV
• Output current(Max)：30mA
• Overall dimensions：185mm*240mm*290mm

Parameter:

· Product Name: stabilized voltage supply

· Item NO.: WD3

· Brand Name: yochain

· Input Voltage: AC 220V±10%

· Output Power: 500W

· Output Voltage(stabilivolt): 0-30KV(max)

· Output Current(constant current): 0-30mA(max)

· Response Time: ≤1mS

· Output Adjustable: Adjust the output voltage by the voltage regulation knob (stabilivolt); Adjust the output current by the current regulation knob (constant current)

· Temperature: -10~+40℃

· Humidity: ≤85%

· Cooling Mode: air-cooling

· Size: 185*240*290mm

· Weight: 2000g
