- Input voltage：380V
- Output power：60KW
- Output voltage(Max)：1KV
- Output current(Max)：75A
|
Main Technical Parameters |
||
|
Product Name |

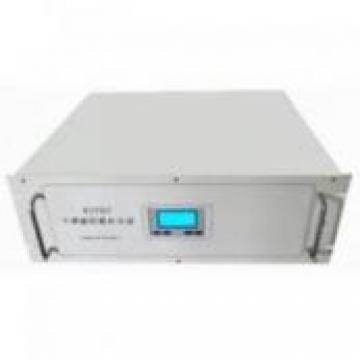

60KWMedium Frequency Magnetron SputteringCoatingPower Supply |
|
|
Product Model |
WZP60 |
|
|
Product Brand |
Yochain |
|
|
Power Supply Type |
Fully Digital Controlled Intelligent Power Supply |
|
|
Input Voltage： |
AC380V±10 % |
|
|
Output |
Power: |
60KW |
|
Current: |
0~75A |
|
|
Voltage: |
Working Voltage200~ 800V,No-load Voltage> 1KV |
|
|
Frequency |
40Khz |
|
|
Wave Type |
Quasi-sine Wave |
|
|
mode |
custom Constant Voltage、Constant Current、Constant Power |
|
|
Adjustment Accuracy |
≤1 % |
|
|
Efficiency |
≥90 % |
|
|
Power factor |
cosΦ≥0.9 |
|
|
Control Mode: |
Power Supply Panel button Control |
|
|
AnalogSignal Control：TTL Electric flat ， can Control Stop Working ，Output Voltage or Output Current or Output Power，External Open Circuit Protection( general Used for Water Flow Protection) |
||
|
Digital Interface Control：485Communication。AlsoCustom232Interface |
||
|
IoT Net WIFI Connection，Remote Net network Monitoring |
||
|
Display Mode: |
English LCD Display |
|
|
Display content ： |
WorkingStatus，Output Voltage，Output Current， set value |
|
|
Output Protection |
Output overvoltage ，Output overcurrent ，Output malfunction |
|
|
Input Protection |
Input overvoltage ，Input undervoltage ，Input overcurrent ， phase loss |
|
|
safe Protection |
GroundingProtection， leak Electric Protection， external control Protection, lightning protection Protection，Overheat |
|
|
Insulation Class |
B level |
|
|
Protection Class |
IP20 |
|
|
Protection response time |
1u S |
|
|
Input |
to HousingElectric resist |
≥20MΩ |
|
Output |
||
|
Input to HousingWithstand Voltage |
2000V/1min |
|
|
Input to Output Withstand Voltage |
3500V/1min |
|
|
OperatingEnvironment |
Temperature Degree： |
0～35 C |
|
Humidity： |
≤80 % |
|
|
CoolingMethod： |
Water Cooled |
|
|
Dimensions： |
600*230*600(mm ) |
|
|
Features : |
Volume Small ，Weight light ， structure Simple，Easy to Operate，Stable and Reliable |
|
|
Circuit adopt Module chemical design ，DebuggingingRepair Convenient。 |
||
|
|
||
|
able platingInsulation film layer ， notgenerate Electric arc ， Load Suitable Range Wide |
||
|
Remarks： |
Factory Default Analog Interface |
|
|
Fault Prompt |
Intelligent Fault Testing Minute analysis , upper limit Fault Alarm， has Parameter Settingerror , human Operation error ,Power Supply internal factor multi-level error code sequence 。 |
|
